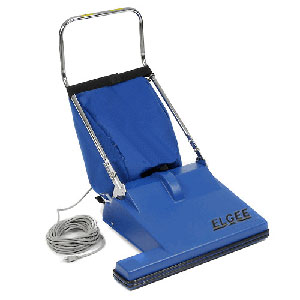

Wide Area Vacuum


Commercial and Industrial Application


Light Dust & Litter with Wide Sweep Coverage

Description

Lightweight, durable, maneuverable and powerful commercial upright vacuums in two cleaning widths: 24″ and 28″. Unlike many uprights, the Wide Area Vacuum has a big sweep width to cover more area thus reduce the time for cleaning.

The chevron pattern brush with four rows of bristles is designed for grooming. Dirt and debris are moved towards the center, while the “no-fling” brush barrier contains and directs the dirt and debris into the over-sized vacuum inlet for maximum pickup.

Heavy-duty construction with a welded steel chassis that is mounted on structural foam housing provides added durability and strength; yet it is light weight with excellent maneuverability.

The 3 track V-belt drive system increases torque and power assists forward movement while enhancing the unit CFM.

Application

  • Light Debris
  • Indoor Vacuuming
  • Small to Medium Size Areas (200 sqft – 7000 sqft)
  • Convenient to get Around Furniture, Equipment and Apparatus
  • Carpet or Hard Surface Cleaning

Storeroom Cleaning with the 24″ Wide Area Vac

For Use In

  • Restaurants
  • Catering Halls
  • Skating Rinks
  • Business Offices
  • Theaters
  • Warehouses
  • Indoor Amusement Parks

Features

  • 5 position pile height adjustment for maximum cleaning efficiency
  • Heavy-duty dust retentive cloth outer filter bag
  • Large capacity disposable paper filter bag
  • The top-fill system assures maximum pickup and performance
  • A 3.5″ inlet eliminates clogging at intake
  • L-shape/low profile cleans around and under furniture
  • Wrap-around bumper protects furniture and walls from damage
  • Chrome plated steel handle folds for convenient storage and transport
  • UL/CUL listed

Specification

Specifications SV-240 & SVG-241 SV-280 & SVG-281
Cleaning Path 24″ 28″
Current 8.0 amps 8.5 amps
Motor 5/8 HP, 120 Volts – 200 CFM 5/8 HP, 120 Volts – 200 CFM
Brush Speed SV Model 3500 RPM
SVG Model 1650 RPM
SV Model 3500 RPM
SVG Model 1650 RPM
Brush Size 3″ Diameter 3″ Diameter
Capacity 1.2 Bushel 1.2 Bushel
Inlet 31/2″ Diameter 31/2″ Diameter
Power Cord 60 ft, 16 Gauge/3 Wire Grounded 60 ft, 16 Gauge/3 Wire Grounded
Weight Under 75 lbs Under 75 lbs
Equipped with (1) COG and a 3 Track V-belt drive system in a 2-to-1 ratio (1) COG and a 3 Track V-belt drive system in a 2-to-1 ratio
Dimensions 341/2″L x 251/4″W x 361/2″H 341/2″L x 29″W x 361/2″H

"I wanted to take this opportunity to tell you how pleased we are with the Elgee Power Vac. It is a breeze to keep our truck beds clean. Keep up the good work. Thanks to all the folks at Elgee for making our job easier."



Joe Major, President - Major Trucking Inc
